Description

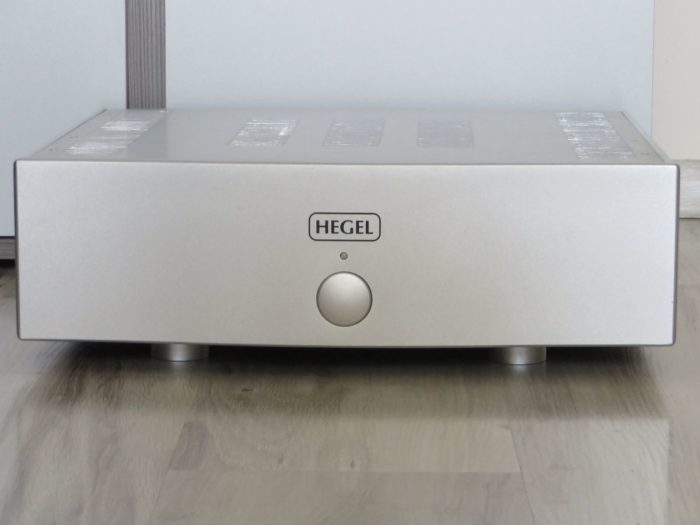

HEGEL H2A Power Amplifier
Power output 200W + 200W at 8 Ohms
Minimum load Loudspeaker impedance down to 1,5 ohms can be used.
Input Sources RCA / phono inputs and balanced XLR selected by input switch
Input Terminals Gold plated RCA / Phono unbalanced and gold plated XLR balanced
Output Terminals Two sets of gold plated speaker terminals each channel
Frequency response Less than +/- 0.1 dB deviation 20Hz-20kHz
Phase response Less than 2 degrees deviation 20Hz-20kHz
Signal-to-noise ratio More than 100dB
Crosstalk Less than -100dB
Distortion Less than 0.004% @ 100W 8 Ohms 1kHz
Intermodulation Less than 0.01% (19kHz + 20kHz)
Damping factor More than 1000 ( main power output stage )
Dimensions 12cm x 43cm x 43cm (HxWxD), 25kg shipment weight.
